Pneumatic Rivet Nut Setting Tool 14mm Stroke Hexagon Punching Tool

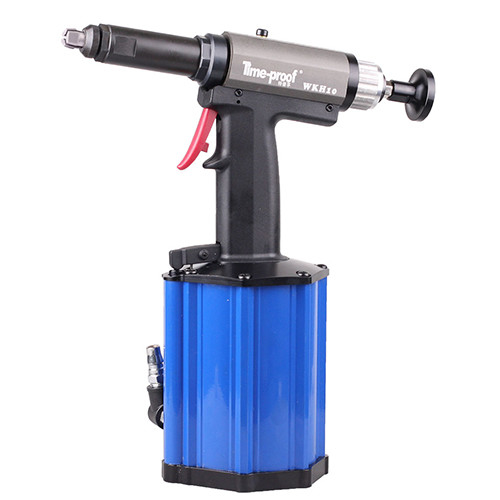

Large Image : Pneumatic Rivet Nut Setting Tool 14mm Stroke Hexagon Punching Tool

Product Details:

Place of Origin:	China
Brand Name:	Time-proof
Certification:	CE
Model Number:	WKH10

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	aluminium box
Delivery Time:	5-35 work days
Payment Terms:	T/T, L/C
Supply Ability:	2000pcs per month

Contact Now

Pneumatic Rivet Nut Setting Tool 14mm Stroke Hexagon Punching Tool

Description

Air Supply Pressure:	0,5Mpa ~ 0,7Mpa	Output Traction Power:	22,000 N ~ 30,800 N
Stroke:	14mm	Net Weight:	2,2 Kgs
Cycle:	2.5s	Noise:	<80dB
Capacity:	See The Tool Capacity Table
High Light:	Pneumatic Rivet Nut Setting Tools 14mm Stroke , Pneumatic Rivet Nut Setting 14mm Strokes , Pneumatic Rivet Setting 14mm Strokes

Pneumatic Hexagon Punching Tool Rivet Nut Setting Tool WKH10

Pneumatic Hexagon Punching Tool is an advanced tool for machining hexagonal hole. It adopts pneumatic hydraulic power to change the round hole into hexagonal one, making it more efficient and easier to open the hexagonal hole.

TOOL CAPACITY

a) To set M5, M6, M8 hexagon hole on Aluminum sheet with thickness not more than 5mm;

M10 hexagon hole, not more than 4mm.

b) To set M5, M6, M8, M10 hexagon hole on Steel metal sheet with thickness not more than 3mm.

c) To set M5, M6, M8 hexagon hole on Stainless Steel sheet with thickness not more than 2mm; for M10, not more than 1.5mm

nose assembly	hole diameter(mm)		workpiece thickness (mm)
			aluminium	steel	stainless steel
M5	7.2	+0.1	≤5	≤3	≤2
		-0
M6	9.2	+0.1	≤5	≤3	≤2
		-0
M8	11.5	+0.1	≤5	≤3	≤2
		-0
M10	13.5	+0.1	≤4	≤3	≤1.5

Pneumatic Rivet Nut Setting Tool 14mm Stroke Hexagon Punching Tool 0

TOOL SPECIFICATIONS

air supply pressure: 0,5Mpa ~ 0,7Mpa
output traction power: 22,000 N ~ 30,800 N
stroke: 14 mm
net weight: 2,2 kgs
cycle: 2.5s
noise: <80dB

Pneumatic Rivet Nut Setting Tool 14mm Stroke Hexagon Punching Tool 1

TOOL FEATURES

working on one side.
powerful, fast
easy operation
widely applied in alloy aluminium, carbon steel, stainless steel
