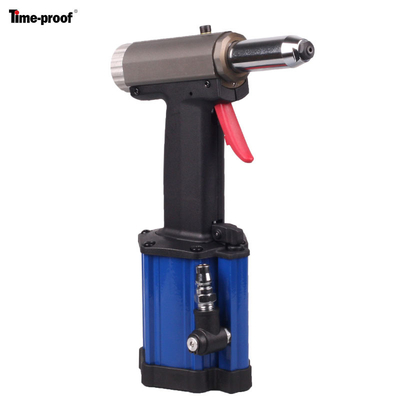

Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed

Certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
I'm Online Chat Now

Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed

Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed
Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed

Large Image :  Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: N240
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: paper carton
Delivery Time: 5-35 work days
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed

Description
Tool Model: N240 Air Supply: 5 Bar - 7 Bar
Traction Power: 6,300 N - 8,820 N Stroke: 16 Mm
Capacity: Blind Rivets 2.4-4.0mm All Materials Net Weight: 1.1kgs
High Light:

4.0mm air powered rivet gun

,

2.4mm air rivet nut gun

,

air powered rivet gun 16mm Stroke





PRODUCT DESCIPTION


Modular Design:

It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.



Innovation:

The most remarkable features of the tools are the unique design of the tool bodies - air cylinders.
With vertical hexigon-shaped air cylinder design, it changes the triditional way of production. The air cyliners are closed, from top and bottom, by six screws instead of triditionally tapping the thread around the cylinder body which requires considerable material thickness. With the unique cylinder closing methord, it makes the tools are comparatively lighter.



Main Features:

  • light weight.

  • parts with hardened mirror finishing.

  • oil-refill from top.

  • high-Mg alloy hexigon body design light and strong.

Specifications:

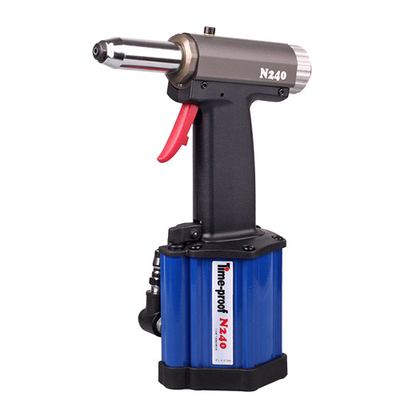

N240 Air Riveting Tool



Main performance parameters Air supply: 0.5Mpa-0.7Mpa 5bar-7bar
Traction power: 6,300 N - 8,820 N
Stroke: 16mm
Capacity Blind rivets Aluminum 2.4-4.0mm
Blind rivets Steel 2.4-4.0mm
Blind rivets Stainless steel 2.4-4.0mm
  Net Weight 1.1kgs
Height: 268mm




Blind Rivets 2.4mm - 4.0mm Air Powered Rivet Gun 16mm Stroke Fast Speed 0



INDUSTRIAL SERIES


ndustrial series riveting tools consists of models, with prefix -N for rivets setting tools and prefix -M for rivet nuts setting tools:
N240, N240V for setting blind rivets up to 4,0mm.
N250, N250V for setting blind riveets up to 4,8/5,0mm.

The model codes with suffix -V indicates the tool with vacuum sucking system to hold the blind rivets in the tool nosepiece and automatic blow out the rest mandrel after setting.



BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;



FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
